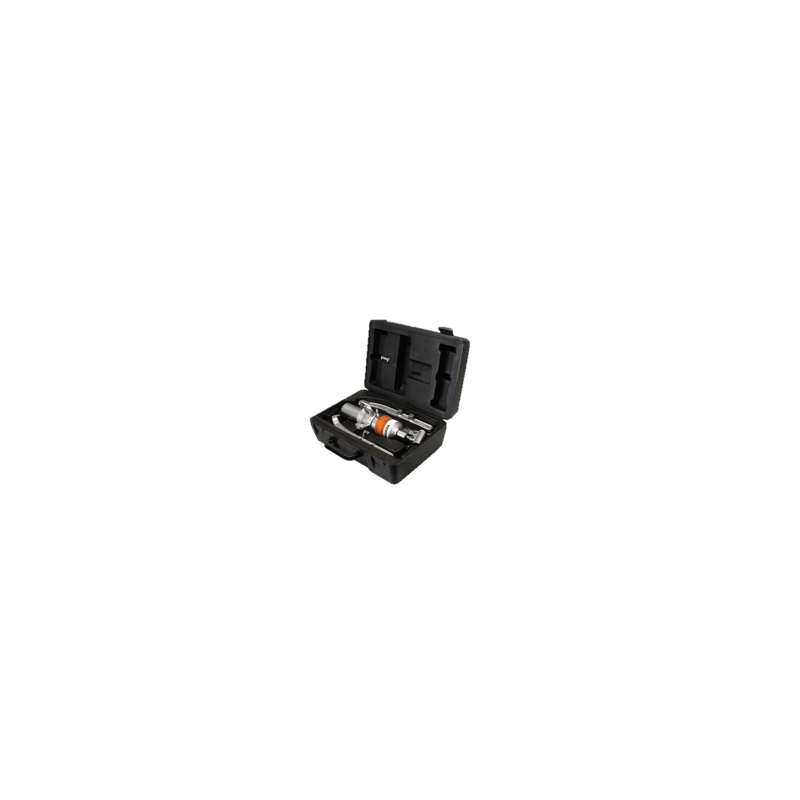

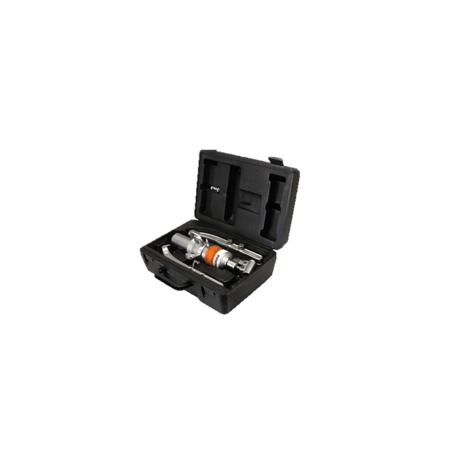

PH113C Hydraulic puller kit

PH113C Hydra Grip - O - Matic

New product



 The PH113C Pullers Set gives 15 tons of pulling force with a 229mm jaw reach and 280mm jaw spread coupled with an 80mm stroke.

 Ideal for pulling a wide range of press fitted parts including bushings, bearings, wheels, gears and pulleys.

Supplied complete with test certificate traceable to national standards.

More details

Add to wishlist

More info

The PH113C Pullers Set gives 15 tons of pulling force with a 229mm jaw reach and 280mm jaw spread coupled with an 80mm stroke.

Ideal for pulling a wide range of press fitted parts including bushings, bearings, wheels, gears and pulleys.

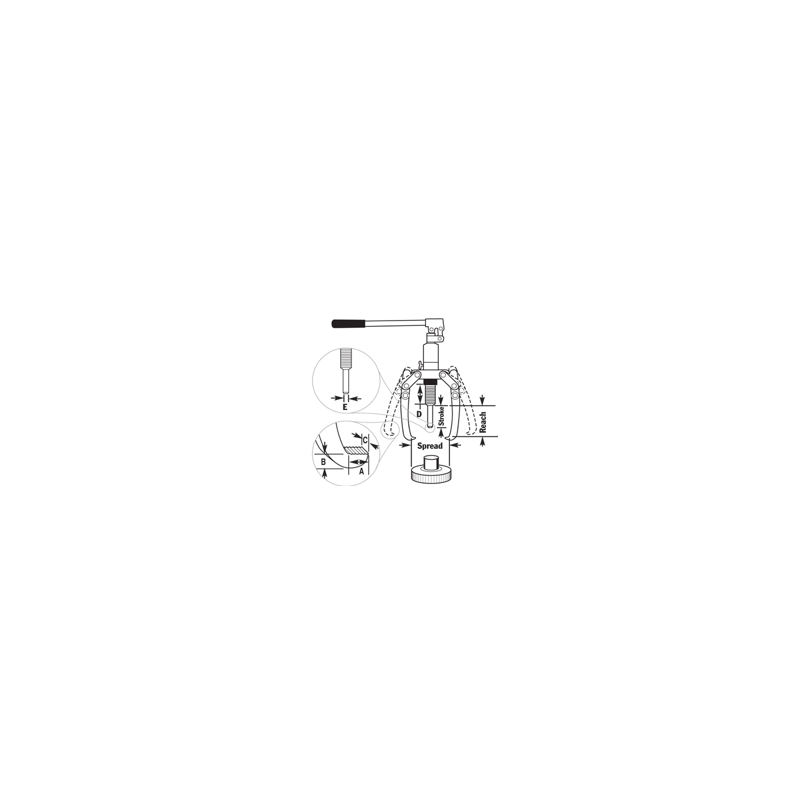

 Drawing dimensions – A = 14.3mm, B = 9.5mm, C = 29mm, D = 83mm and E = 29mm.

Supplied complete with test certificate traceable to national standards.
