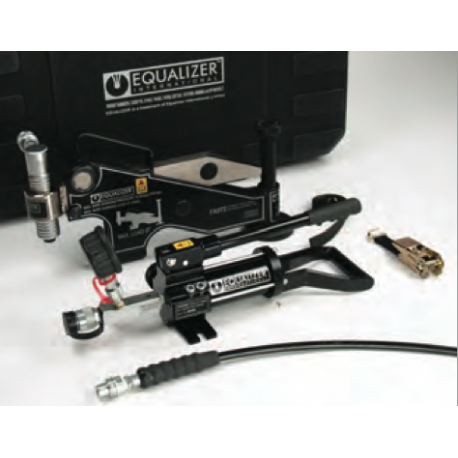

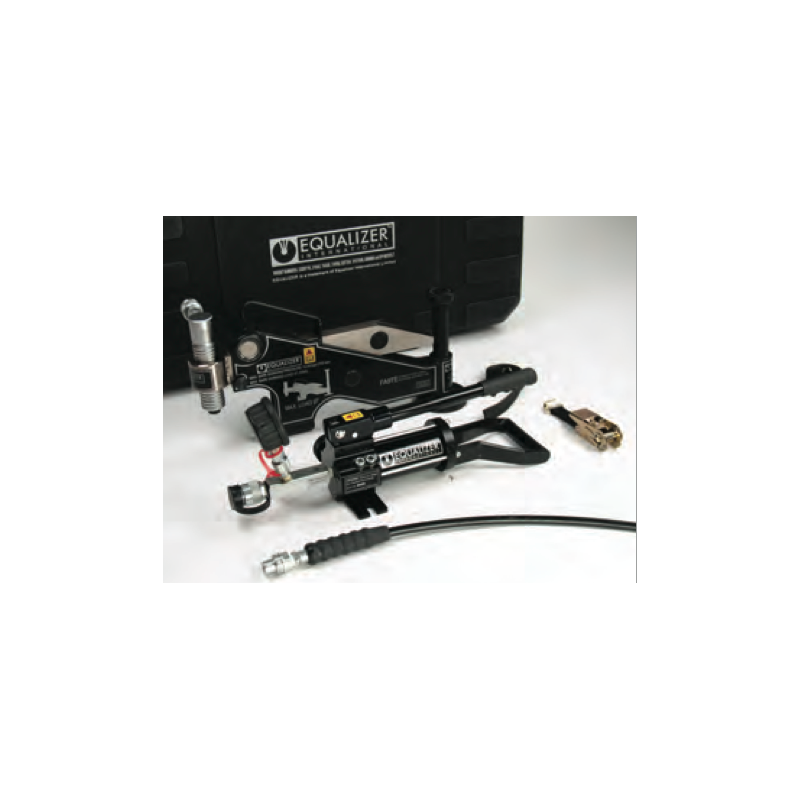

FA9TE Equalizer Flange Alignment Tool
Hydraulic Flange Tool FA9TE
New product
The Equalizer FA9TE Hydraulic linear and rotational flange alignment tool has an alignment force of 90kN (9T) with 700 bar (10,000 psi) applied hydraulic pressure. The tool requires a minimum bolt hole diameter of 35.5mm (1.40") has a maximum wing reach of 240.0mm (9.45") and weighs 14.5Kgs (32.0lbs).
More info
The Equalizer FA9TE Hydraulic linear and rotational flange alignment tool has an alignment force of 90kN (9T) with 700 bar (10,000 psi) applied hydraulic pressure. The tool requires a minimum bolt hole diameter of 35.5mm (1.40") has a minimum wing reach of 240.0mm (9.45") and weighs 14.5Kgs (32.0lbs).
This hydraulic tool is for use on larger diameter, higher pressure flanges and can address both rotational and radial misalignment. it is activated by by an external hydraulic pump.
