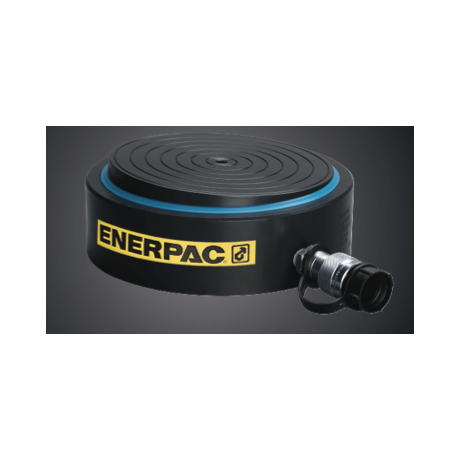

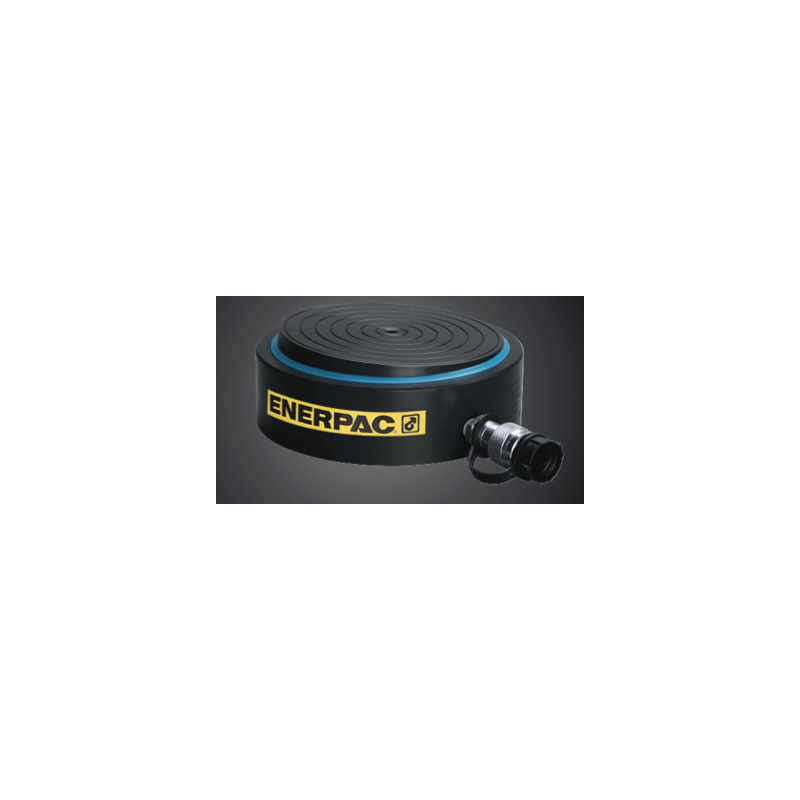

Enerpac CUSP100 Ultra Flat Cylinder
CUSP100 Cylinder
New product
The CUSP100 cylinder from Enerpac's new range of ultra flat cylinders produces 1057kN of force @ 700 bar maximum working pressure, has a collapsed height of 63.5mm, a stroke of 10mm and a tilting capability of 4 degrees.
Supplied complete with test certificate traceably to national standards.
More info
The CUSP100 cylinder from Enerpac's new range of ultra flat cylinders produces 1057kN of force @ 700 bar maximum working pressure, has a collapsed height of 63.5mm, a stroke of 10mm and a tilting capability of 4 degrees.
Supplied complete with test certificate traceably to national standards.
The CUSP range have the following features:-
Up to 4% side load of maximum capacity.
Extremely low collapsed height.
Integrated tilting function of between 2 and 4 degrees dependent on model chosen.
Nitro - Carborized surface treatment for harsh conditions.
Red line to indicate maximum stroke.
PLEASE NOTE THE CUSP RANGE GOES FROM 97kN TO 10169kN CAPACITY WITH THE 1589,2099,2542,3168,4009,5116,5989,7529 & 10169kN MODELS BEING PRICED ON APPLICATION ONLY - FOR DETAILS PLEASE CONTACT US DIRECTLY.
