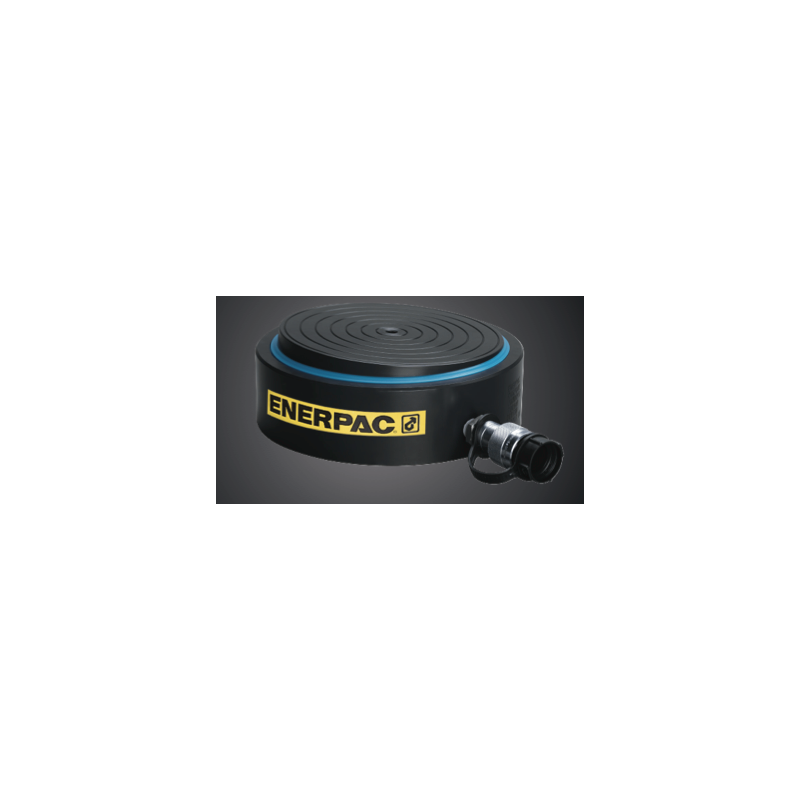

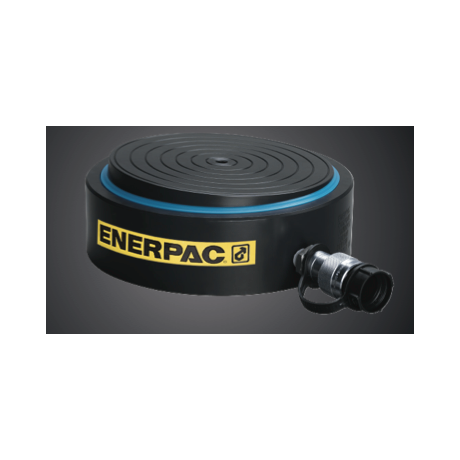

Enerpac CUSP75 Ultra Flat Cylinder
CUSP75 Cylinder
New product
The CUSP75 cylinder from Enerpac's new range of ultra flat cylinders produces 777kN of force @ 700 bar maximum working pressure, has a collapsed height of 60.5mm, a stroke of 10mm and a tilting capability of +/- 4 degrees.
Supplied complete with a test certificate traceable to national standards.
More info
The CUSP75 cylinder from Enerpac's new range of ultra flat cylinders produces 777kN of force @ 700 bar maximum working pressure, has a collapsed height of 60.5mm, a stroke of 10mm and a tilting capability of +/- 4 degrees.
The CUSP range have the following features:-
Up to 4% side load of maximum capacity.
Extremely low collapsed height.
Integrated tilting function of between 2 and 4 degrees dependent on model chosen.
Nitro - Carborized surface treatment for harsh conditions.
Red line to indicate maximum stroke.
Supplied complete with test certificate traceable to national standards.
PLEASE NOTE THE CUSP RANGE GOES FROM 97kN CAPACITY TO 10169kN CAPACITY WITH 1589,2099,2542,3168,4009,5116,7529 & 10169kN MODELS BEING PRICED ON APPLICATION ONLY - FOR DETAILS PLEASE CONTACT US DIRECTLY.
