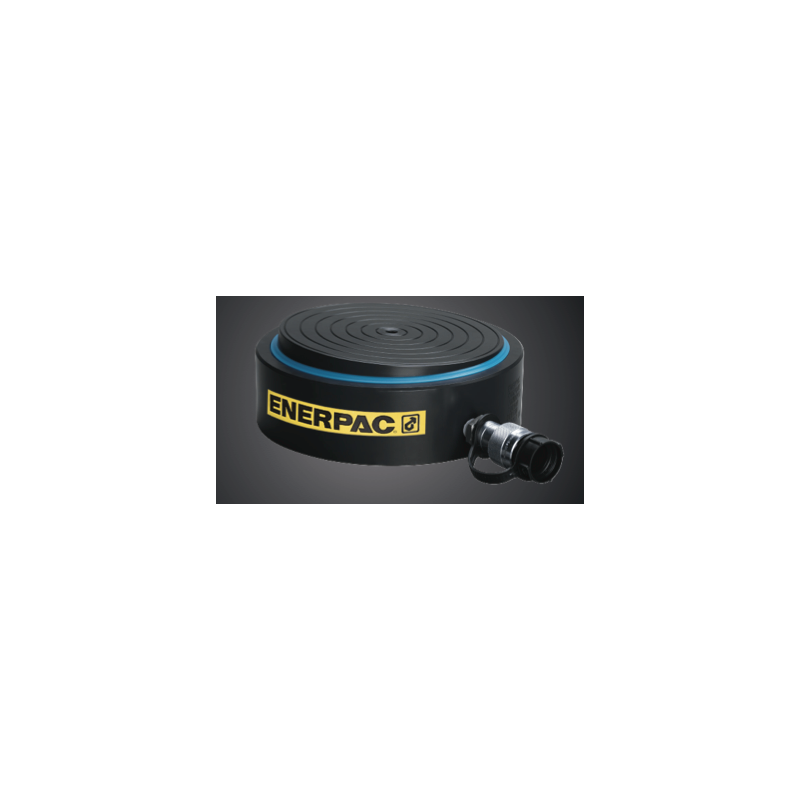

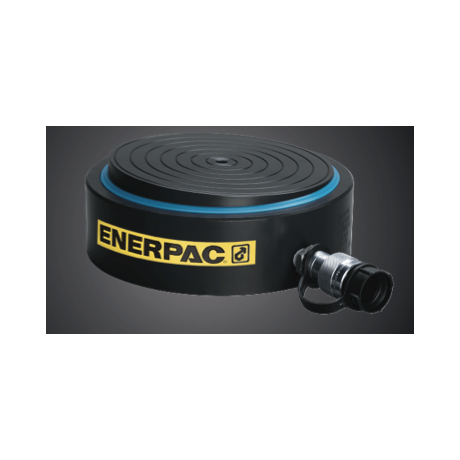

Enerpac CUSP30 Ultra Flat Cylinder
CUSP30 Cylinder
New product
The CUSP30 cylinder from Enerpac's new range of ultra flat cylinders produces 304kN of force @ 700 bar maximum working pressure and has a collapsed height of 43.5mm and a 6mm stroke.
Supplied complete with test certificate traceable to national standards.
More info
The CUSP30 cylinder from Enerpac's new range of ultra flat cylinders produces 304kN of force @ 700 bar maximum working pressure and has a collapsed height of 43.5mm and a 6mm stroke and a tilting capacity of + /- 2 degrees.
The CUSP range have the following features:-
Up to 4% side load of maximum capacity.
Extremely low collapsed height.
Integrated tilting function of between 2 and 4 degrees dependent on model chosen.
Nitro - Carbonized surface treatment for harsh conditions.
Red line to indicate maximum stroke.
Supplied complete with test certificate traceable to national standards.
PLEASE NOTE THE CUSP RANGE GOES FROM 97kN CAPACITY TO 10169kN CAPACITY WITH 1589,2099,2542,3168,4009,5116,5989,7529 & 10169kN MODELS BEING PRICED ON APPLICATION ONLY - FOR DETAILS PLEASE CONTACT US DIRECTLY.
