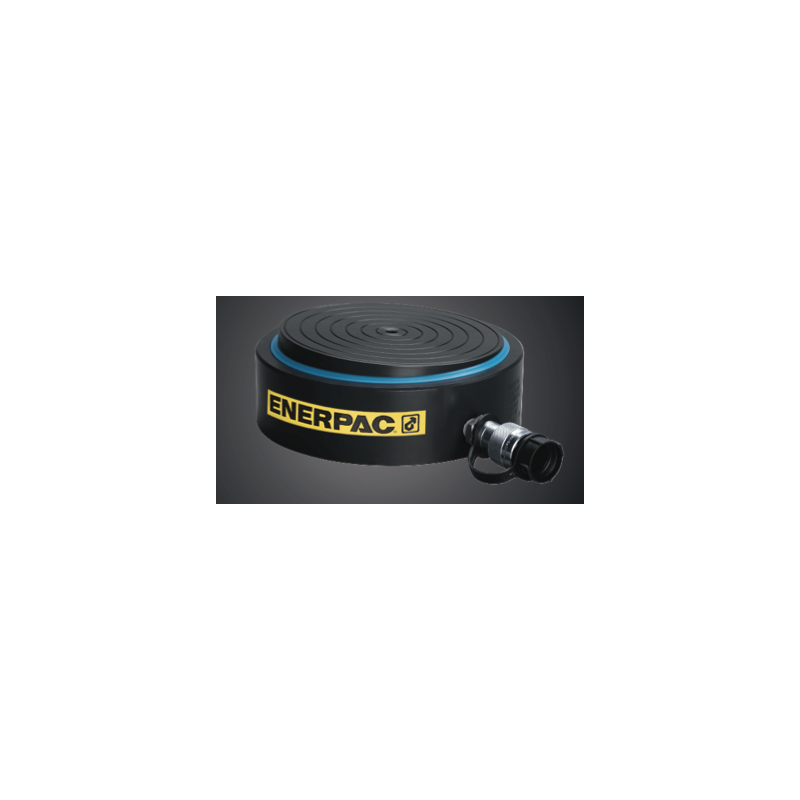

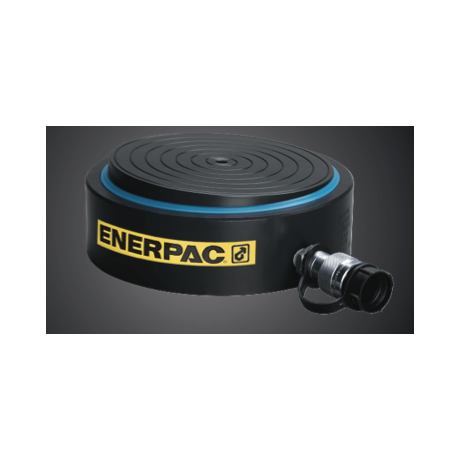

Enerpac CUSP10 Ultra Flat Cylinder
CUSP10 Cylinder
New product
The Enerpac CUSP10 is the lowest capacity cylinder available in their new range of ultra flat cylinders.
Producing 95kN of force @ 700 bar maximum working pressure, this cylinder has a collapsed height of 35.5mm and a 6mm stroke.
Supplied complete with test certificate traceable to national standards.
More info
The Enerpac CUSP10 is the lowest capacity cylinder available in their new range of ultra flat cylinders.
Producing 95kN of force @ 700 bar maximum working pressure, this cylinder has a collapsed height of 35.5mm a 6mm stroke and a tilting capability of +/- 2 degrees.
The CUSP range have the following features:-
Up to 4% side load of maximum capacity
Extremely low collapsed height.
Integrated tilting function of between 2 and 4 degrees dependent on model chosen.
Nitro - Carbonized surface treatment for harsh conditions.
Red line to indicate maximum stroke.
Supplied complete with test certificate traceable to national standards.
PLEASE NOTE THE CUSP RANGE GOES FROM 97kN CAPACITY TO 10169kN CAPACITY WITH 1589,2099,2542,3168,4009,5116,5989,7529 & 10169kN MODELS BEING PRICED ON APPLICATION ONLY - FOR DETAILS PLEASE CONTACT US DIRECTLY.
