Enerpac RR1006 View larger

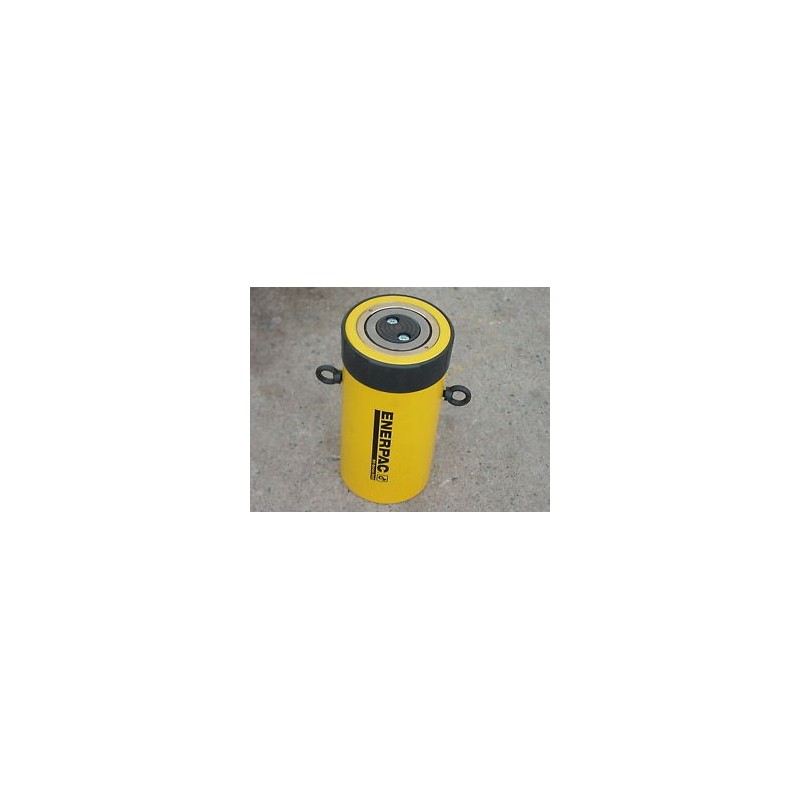

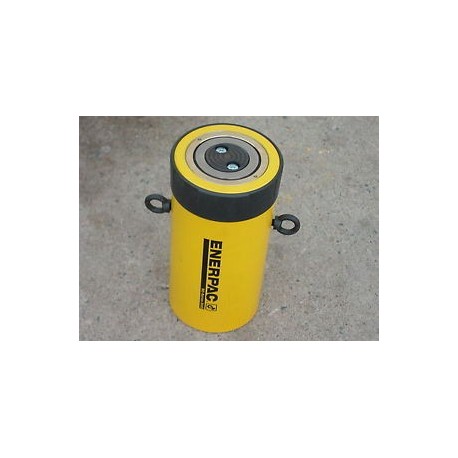

Enerpac RR1006 Hydraulic cylinder

RR1006 Hydraulic cylinder

New product

Double acting cylinder from the Enerpac RR range with 933kN pushing / lifting capacity, 435kN pulling force with 168mm stroke. The RR1006 has a working pressure of 700 bar (10,000 psi) and an oil capacity of 2238cm3 on the push side and 1045cm3 on the pull side. Supplied complete with test certificate traceable to national standards.



More details

Add to wishlist

More info

Double acting cylinder acting cylinder from the Enerpac RR range with 933kN pushing / lifting capacity and 435kN pulling force with 168mm stroke. The RR1006 has a closed height of 357mm and a diameter of 177mm. The RR1006 has a collar thread of 6,7/8” - 12 and an internal plunger thread of 1, 1/4” – 12 to facilitate easy mounting and adaption for pulling applications.

The RR range of cylinders have a built in safety valve to prevent over pressurization and plunger wiper seals to reduce the chance of contamination, therefore prolonging cylinder life. Supplied complete with test certificate traceable to national standards.



Reviews

No customer reviews for the moment.

Write a review

Enerpac RR1006 Hydraulic cylinder

Enerpac RR1006 Hydraulic cylinder

Double acting cylinder from the Enerpac RR range with 933kN pushing / lifting capacity, 435kN pulling force with 168mm stroke. The RR1006 has a working pressure of 700 bar (10,000 psi) and an oil capacity of 2238cm3 on the push side and 1045cm3 on the pull side. Supplied complete with test certificate traceable to national standards.
