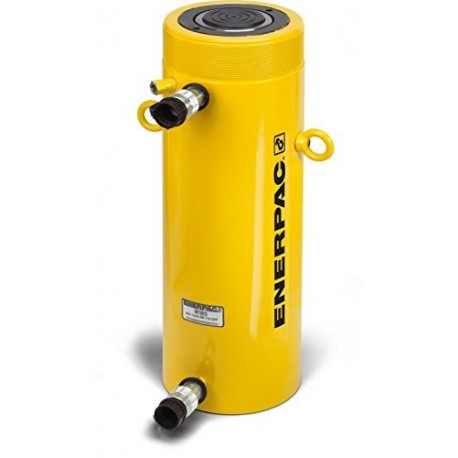

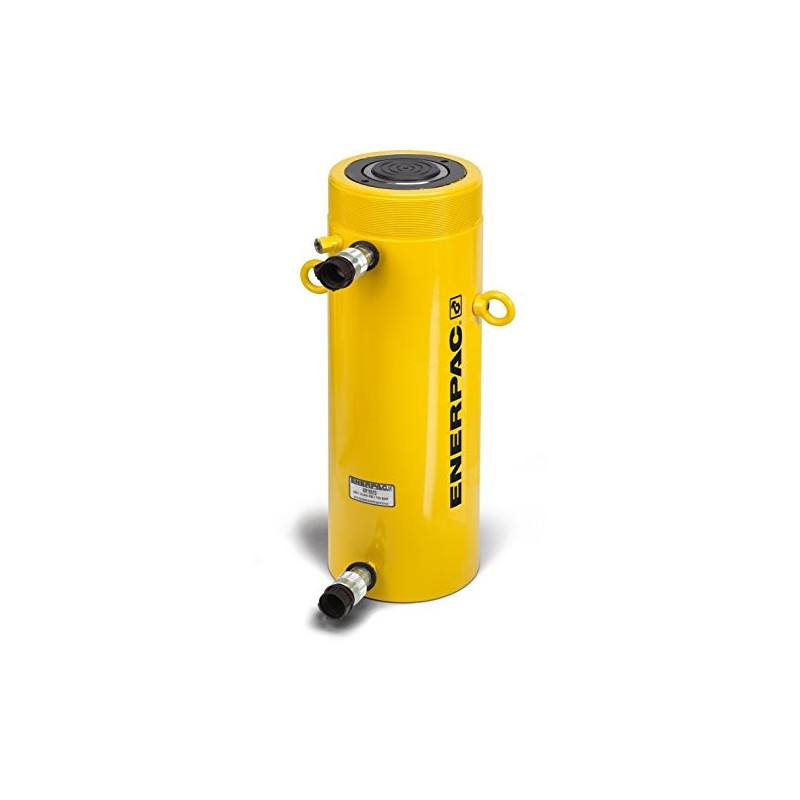

Enerpac RR506 Hydraulic cylinder
RR506 Hydraulic cylinder
New product
Double acting cylinder from the Enerpac RR range with 498kN pushing / lifting capacity, 103kN pulling force with 156mm stroke. The RR506 has a working pressure of 700 bar (10,000 psi) and an oil capacity of 1111cm3 on the push side and 335cm3 on the pull side. Supplied complete with test certificate traceable to national standards.
More info
Double acting cylinder acting cylinder from the Enerpac RR range with 498kN pushing / lifting capacity and 103kN pulling force with 156mm stroke. The RR506 has a closed height of 331mm and a diameter of 127mm. The RR506 has a collar thread of 5” - 12 and an internal plunger thread of 1” – 12 to facilitate easy mounting and adaption for pulling applications.
The RR range of cylinders have a built in safety valve to prevent over pressurization and plunger wiper seals to reduce the chance of contamination, therefore prolonging cylinder life. Supplied complete with test certificate traceable to national standards.
