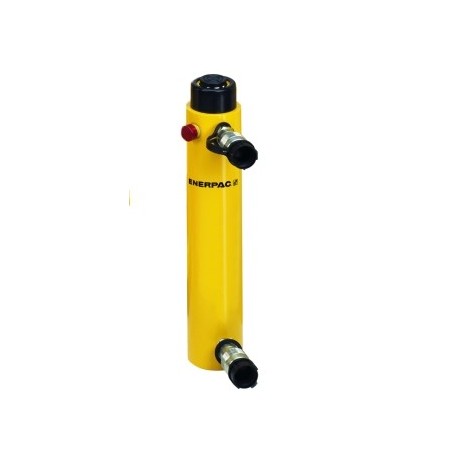

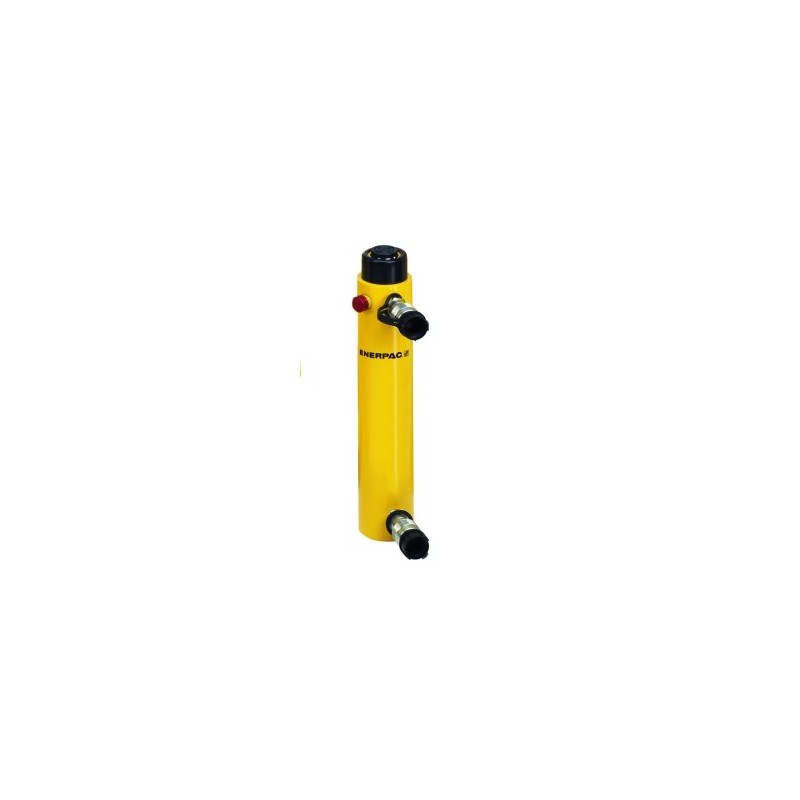

Enerpac RR1010 Hydraulic cylinder
RR1010 Hydraulic cylinder
New product
Double acting cylinder from the Enerpac RR range with 101kN pushing / lifting capacity,33kN pulling force with 254mm stroke. The RR1010 has a working pressure of 700 bar (10,000 psi) and an oil capacity of 368cm3 on the push side and 122cm3 on the pull side. Supplied complete with test certificate traceable to national standards.
More info
Double acting cylinder acting cylinder from the Enerpac RR range with 101kN pushing / lifting capacity and 33kN pulling force with 254mm stroke. The RR1010 has a closed height of 409mm and a diameter of 73mm. The RR1010 has a collar thread of 2,1/4” – 14 and an internal plunger thread of 1” – 8 to facilitate easy mounting and adaption for pulling applications.
The RR range of cylinders have a built in safety valve to prevent over pressurization and plunger wiper seals to reduce the chance of contamination, therefore prolonging cylinder life. Supplied complete with test certificate traceable to national standards.
