Enerpac RC156 View larger

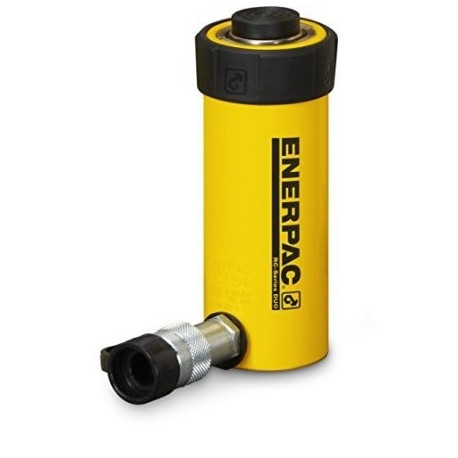

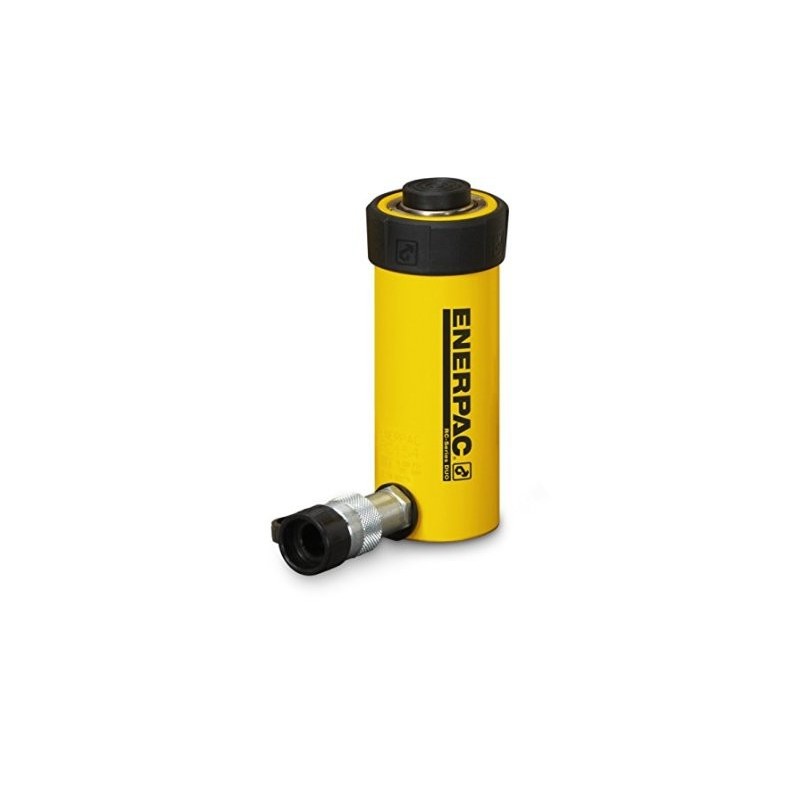

Enerpac RC156 Hydraulic cylinder

RC156 Hydraulic cylinder

New product

General purpose, spring assisted return, single acting cylinder from the Enerpac “Duo” range with 142kN lifting capacity and 152mm stroke. The RC156 has a working pressure of 700 bar (10,000 psi) and an oil capacity of 308cm3. Supplied complete with test certificate traceable to national standards.



More details

Add to wishlist

More info

General purpose, spring assisted return, single acting cylinder from the Enerpac “Duo” range with 142kN lifting capacity and 152mm stroke. The RC156 has a closed height of 271mm and a diameter of 69mm, a collar thread of 2,3/4” - 16 UN and two base mounting holes of 3/8” - 16 UN. The “Duo” range of cylinders has improved saddle retention, thread protectors fitted to the collar threads as standard, heavy duty return springs and the unique GR2 bearing system. The GR2 bearing system absorbs eccentric load stress to protect the cylinder against abrasion, over – extending or plunger blow outs and jamming or top – end mushrooming. This ensures that the “ Duo” range will provide long trouble free operation. Supplied complete with test certificate traceable to national standards.



Reviews

No customer reviews for the moment.

Write a review

Enerpac RC156 Hydraulic cylinder

Enerpac RC156 Hydraulic cylinder

General purpose, spring assisted return, single acting cylinder from the Enerpac “Duo” range with 142kN lifting capacity and 152mm stroke. The RC156 has a working pressure of 700 bar (10,000 psi) and an oil capacity of 308cm3. Supplied complete with test certificate traceable to national standards.
