Enerpac RC102 View larger

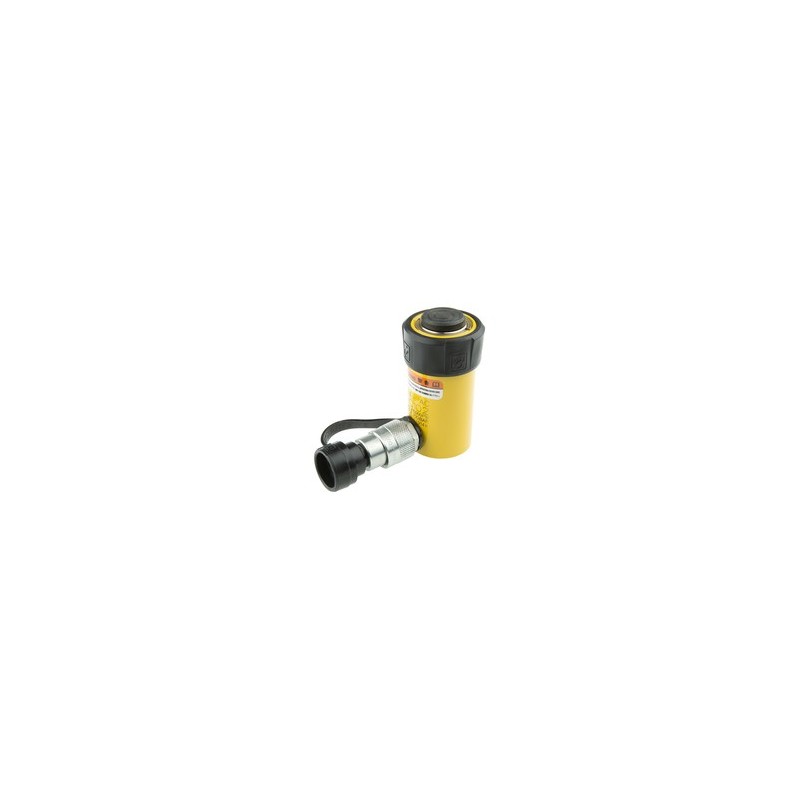

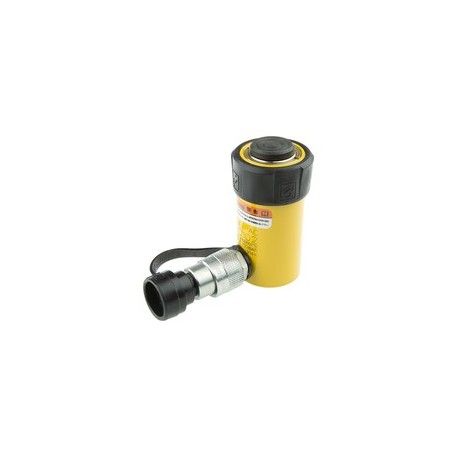

Enerpac RC102 Hydraulic cylinder

RC102 Hydraulic cylinder

New product

General purpose, spring assisted return, single acting cylinder from the Enerpac “Duo” range with 101kN lifting capacity and 54mm stroke. The RC102 has a working pressure of 700 bar (10,000 psi) and an oil capacity of 78cm3. Supplied complete with test certificate traceable to national standards.



More details

Add to wishlist

More info

General purpose, spring assisted return, single acting cylinder from the Enerpac “Duo” range with 101kN lifting capacity and 54mm stroke. The RC102 has a closed height of 121mm and a diameter of 57mm, a collar thread of 2,1/4” - 14 UN and two base mounting holes of 5/16” – 18 UN. The “Duo” range of cylinders has improved saddle retention, thread protectors fitted to the collar threads as standard, heavy duty return springs and the unique GR2 bearing system. The GR2 bearing system absorbs eccentric load stress to protect the cylinder against abrasion, over – extending or plunger blow outs and jamming or top – end mushrooming. This ensures that the “ Duo” range will provide long trouble free operation. Supplied complete with test certificate traceable to national standards.



Reviews

No customer reviews for the moment.

Write a review

Enerpac RC102 Hydraulic cylinder

Enerpac RC102 Hydraulic cylinder

General purpose, spring assisted return, single acting cylinder from the Enerpac “Duo” range with 101kN lifting capacity and 54mm stroke. The RC102 has a working pressure of 700 bar (10,000 psi) and an oil capacity of 78cm3. Supplied complete with test certificate traceable to national standards.
