Enerpac RC53 View larger

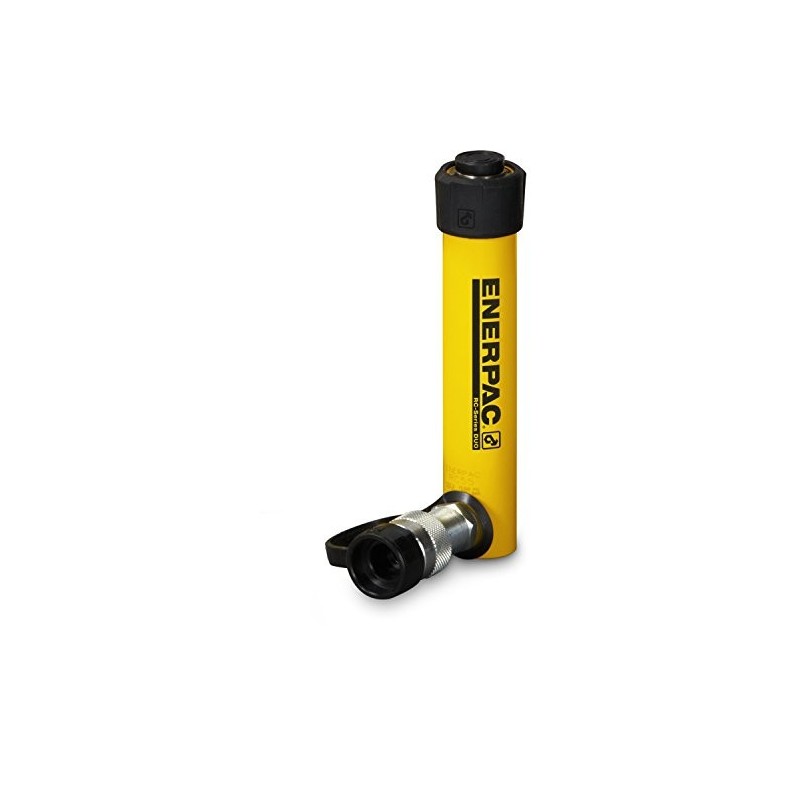

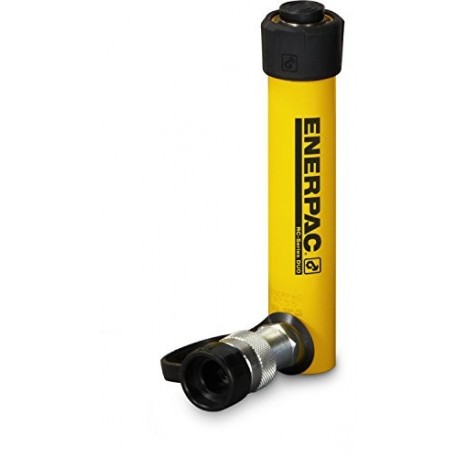

Enerpac RC53 Hydraulic cylinder

RC53 Hydraulic cylinder

New product

General purpose, spring assisted return, single acting cylinder from the Enerpac "Duo" range with 45kN lifting capacity and 76mm stroke. The RC53 has a working pressure of 700 bar (10,000 psi) and an oil capacity of 50cm3. Supplied complete with test certificates traceable to national standards.

More details

Add to wishlist

More info

General purpose,spring assisted return, single acting cylinder from the Enerpac "Duo" range with 45kN lifting capacity and 76mm stroke.

The RC53 has a closed height of 165mm and a diameter of 38mm, a collar mounting thread of 1,1/2" - 16 UN and two off base mounting holes of 1/4" - 20 UN. The "Duo" range of cylinders have improved saddle retention, thread protectors fitted to to the collar threads as standard, heavy duty return springs and the unique GR2 bearing system. The GR2 bearing system absorbs eccentric load stresses to protect the cylinder against abrasion, over - extending or plunger blow outs and jamming or top - end mushrooming. This ensure that the "Duo" range will provide long trouble fee operation. Supplied complete with test certificates traceable to national standards.

Reviews

No customer reviews for the moment.

Write a review

Enerpac RC53 Hydraulic cylinder

Enerpac RC53 Hydraulic cylinder

General purpose, spring assisted return, single acting cylinder from the Enerpac "Duo" range with 45kN lifting capacity and 76mm stroke. The RC53 has a working pressure of 700 bar (10,000 psi) and an oil capacity of 50cm3. Supplied complete with test certificates traceable to national standards.
